Πλαίσιο χόρτου χωρητικότητας γερανού

Easy-to-use positive locking machanism.
Safety chain secures hopper to handling vehicle.
Welded seams prevent leakage.
Extra-deep fork openings.
2" formed top lips.
High visibilty blue enamel finish

Βίντεο

---

Προσδιορισμός

---

Model Number	Volume   (m³)	Χωρητικότητα	Overall (mm)			Fork Pocket Centers	Net Weight (KG)
		(KG)	(L)	ρε	H
D-25-LD	0.2	1,000	514	1320	966	457	163
D-33-LD	0.25	1,000	590	1320	965	457	165
D-50-LD	0.4	1,000	844	1320	965	457	175
D-75-LD	0.6	1,000	793	1549	1092	457	237
D-100-LD	0.75	1,000	1047	1549	1085	457	237
D-150-LD	1.2	1,000	1098	1549	1320	711	272
D-200-LD	1.5	1,000	1428	1549	1333	711	272
D-250-LD	2	1,000	1758	1549	1320	711	313
D-300-LD	2.3	1,000	2068	1549	1295	711	442

Γρήγορες λεπτομέρειες

---

Τόπος προέλευσης: Fujian, Κίνα (ηπειρωτική χώρα)
Εμπορικό σήμα: HUAMAI
Εξυπηρέτηση μετά την πώληση: Δεν παρέχεται υπηρεσία στο εξωτερικό
Product Name: SDH-Self Dumping Hoppers
Χωρητικότητα (kg): 1000kg
Overall L(mm): 844mm
Overall D(mm): 1320mm
Overall H(mm): 965mm
Fork Pocket Centers: 457
Net Weight (KG): 175KG

---

Steel Standard Base Self-Dumping Hoppers

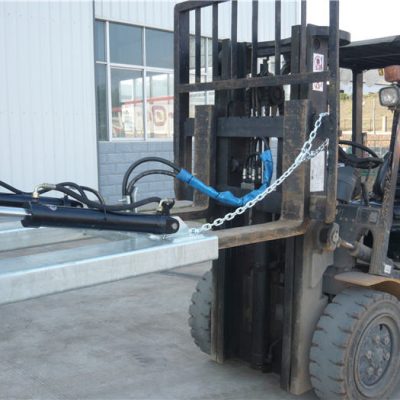

Hoppers automatically dump loads when locking latch is released, then return to locked position. Constructed with precision robotic weld; base is formed steel. Safety chain secures hopper to fork truck, while cable enables dumping from fork truck seat.

Vestil Self-Dumping Steel Forklift Hoppers with Bumper Release

Vestil Self-Dumping Steel Forklift Hoppers with Bumper Release Automatically Dump Contents when Bumper Release Contacts Side of the Dumpster.

Vestil Self-Dumping Steel Forklift Hoppers with Bumper Release are made of heavy gauge steel to provide long lasting durability. Hoppers automatically dump when the Bumper Release contacts the side of the dumpster, and return to the upright, locked position automatically after dumping. Hoppers also include a 4'L Cable for manual dumping from the driver's seat of the forklift. Hoppers rotate approximately 68° and include a safety restraint to secure hopper to forklift truck. Usable fork pocket opening is 7½"W x 2½"H. Units are stackable provided the top hopper is turned 90° from the bottom. Leak-proof hoppers are available upon request. Cubic yards range from .25 - 5. Capacities in pounds are 2000, 4000, 4800, and 6000. Choose from Powder coat Blue or corrosion-resistant Galvanized finishes.
